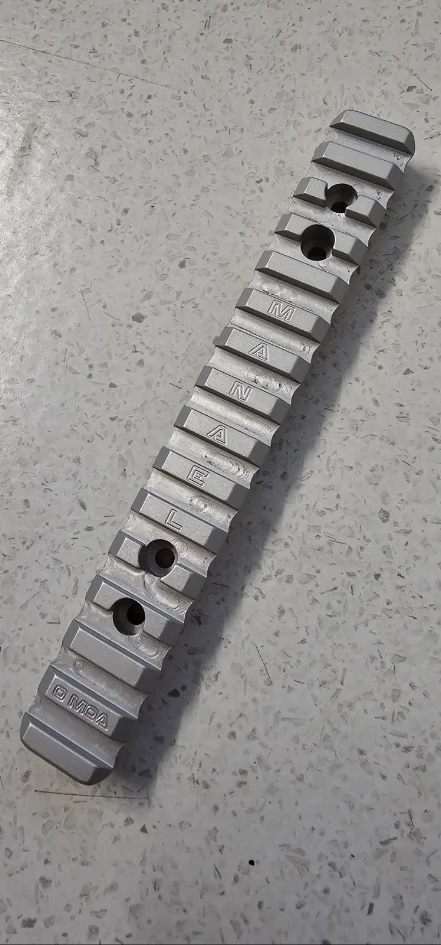

Get the perfect scope elevation and enhanced stability on your Lithgow Arms LA101 Rifle with a premium Lithgow La101 Picatinny Optic Scope Rail by Australian firearms experts MANAEL.

Whether you're regularly shooting at 20 metres or 200 metres, the MANAEL rails are available in four elevations so you can set your scope "zero" at the distance you need and have complete confidence the shots are going where you want them.

Not sure which MOA you need? Check out our handy guide below.

Attention to detail is what sets these rails apart. Designed and made 100% in Australia for Aussie conditions, by the experienced experts at MANAEL and tested in strenuous competition and hunting situations to ensure it ticks all the boxes.

Smooth champhered edges to all mean no snags (one less thing to worry about when hunting or in competition!).

Rugged design is built to last. Each rail is fabricated from billet aluminium for the perfect balance of keeping the weight down and durability up. Extensive testing by the team at Ignition Custom Engineering and MANAEL ensures these rails will hold up to whatever you can throw at it.

Extra length ensures secure mounting of NV optics plus plenty of room to find the perfect mount location for your scope.

Australian Made by MANAEL in Adelaide, South Australia.

  • Compatible Lithgow action factory hardware (screws) so can be screwed in as a DIY install using factory screws
  • Designed to last, made rugged from billet aluminium design
  • Smooth snag free champhered edges
  • Finished in Black or Silver
  • Slect MOA from drop down menu (0 MOA, 20MOA, 30MOA, 40MOA)
  • Available to suit LEFT or RIGHT hand Lithgow Arms LA101 Rifles

Custom MOA and colour finishes available by request. See this write up on a 55MOA elevation rail produced by our gunsmiths.

** Note: The MANAEL Lithgow LA101 Rails are designed to work with the factory screws supplied with the Lithgow Arms LA101 Rifle. These are not usually compatible with aftermarket screws. We are aware some models of Lithgow have screw heads which may be marginally tight. In this case, gently polish heads with sandpaper or a linisher or give us a buzz **

How do I know which MOA rail is best for my rifle?

First step: figure out how much extra travel the scope has:

  • Once mounted and zeroed at your desired distance, wind the turret backwards as far as it will go. Count the clicks.

  • Add how far you went back PLUS the scope base.

  • Eg; If you wound back 13 MOA and you're using a 20 MOA rail, that would be 33MOA. So you would want a 30MOA rail to get maximum elevation (with 3MOA buffer).

20 MOA is usually the "all rounder" that will enable you to shoot at closer and longer distances. It will depends on how much elevation your scope/optics has.

For Rimfires and most scopes, 20MOA will let you do close range work at 25-50m but also reach out to 200m.

0 MOA may limit you to closer work only.

40MOA will mean you can reach waaaaaaaaaaay out there, but at the cost of finding elevation for close range work (it means your zeroed distance will possibly be 200 metres).

30MOA has actually been really growing in popularity for Rimfires as it gives a great blend of both, with a slight focus on the longer ranges.


SKU MAN-rail-LA101
Shipping Weight 0.2000kg
Shipping Width 0.030m
Shipping Height 0.030m
Shipping Length 0.170m
Shipping Cubic 0.000153000m3

Picatinny Rail Lithgow LA101

By: on 14 June 2022
Very well made fitted onto my rifle with no issues, however it would be something to consider in the future, the addition of the 4 screws needed to secure the rail onto the rifle.

Lithgow Rifle LA101 Picatinny Rail

By: on 22 December 2021
A well made product that fitted perfectly.

Lithgow Canted Rail

By: on 7 April 2021
Highly Recommend!!! Great product, great workmanship from an Australian business supporting Australians and the Australian shooting and firearms fraternity. Well Done!!!
