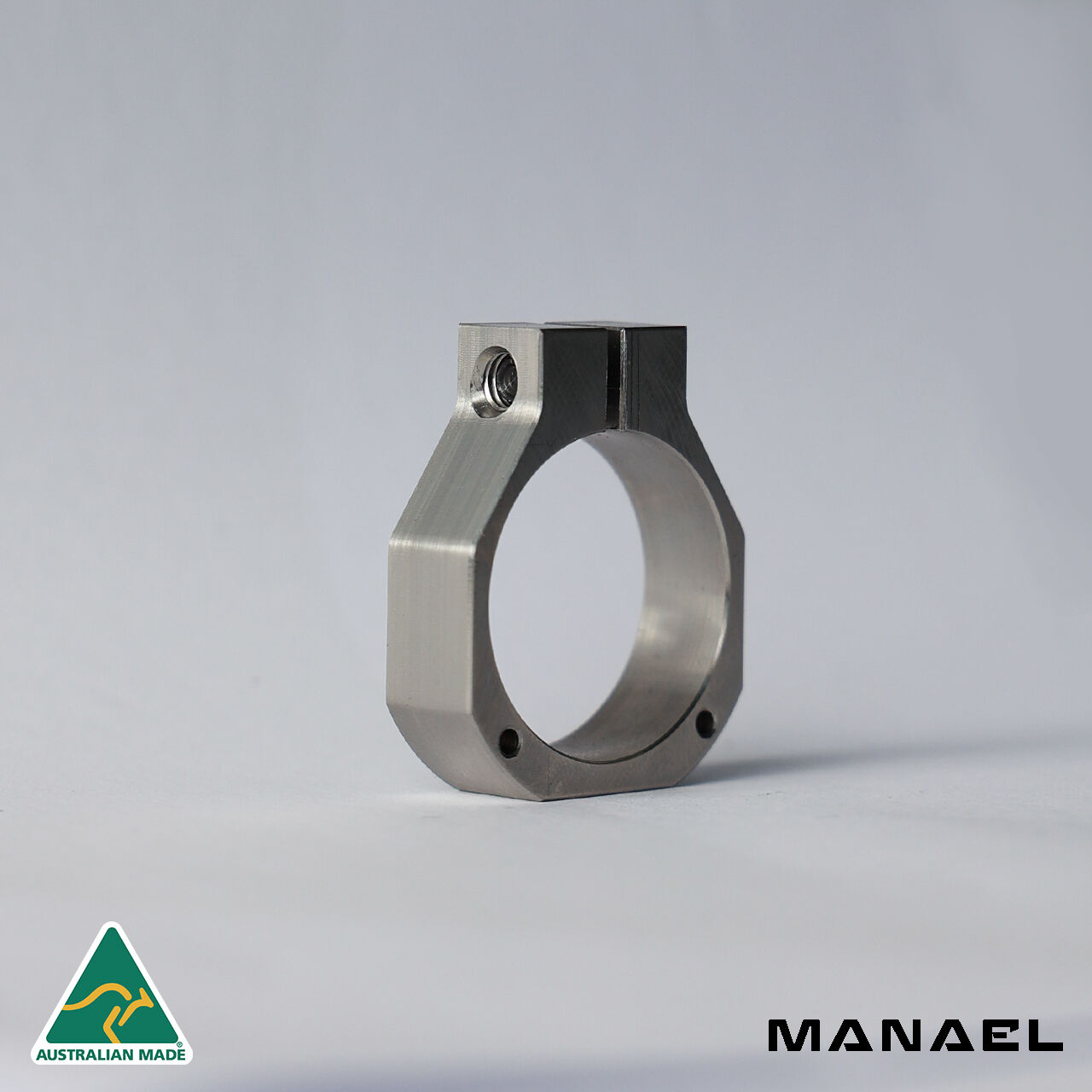

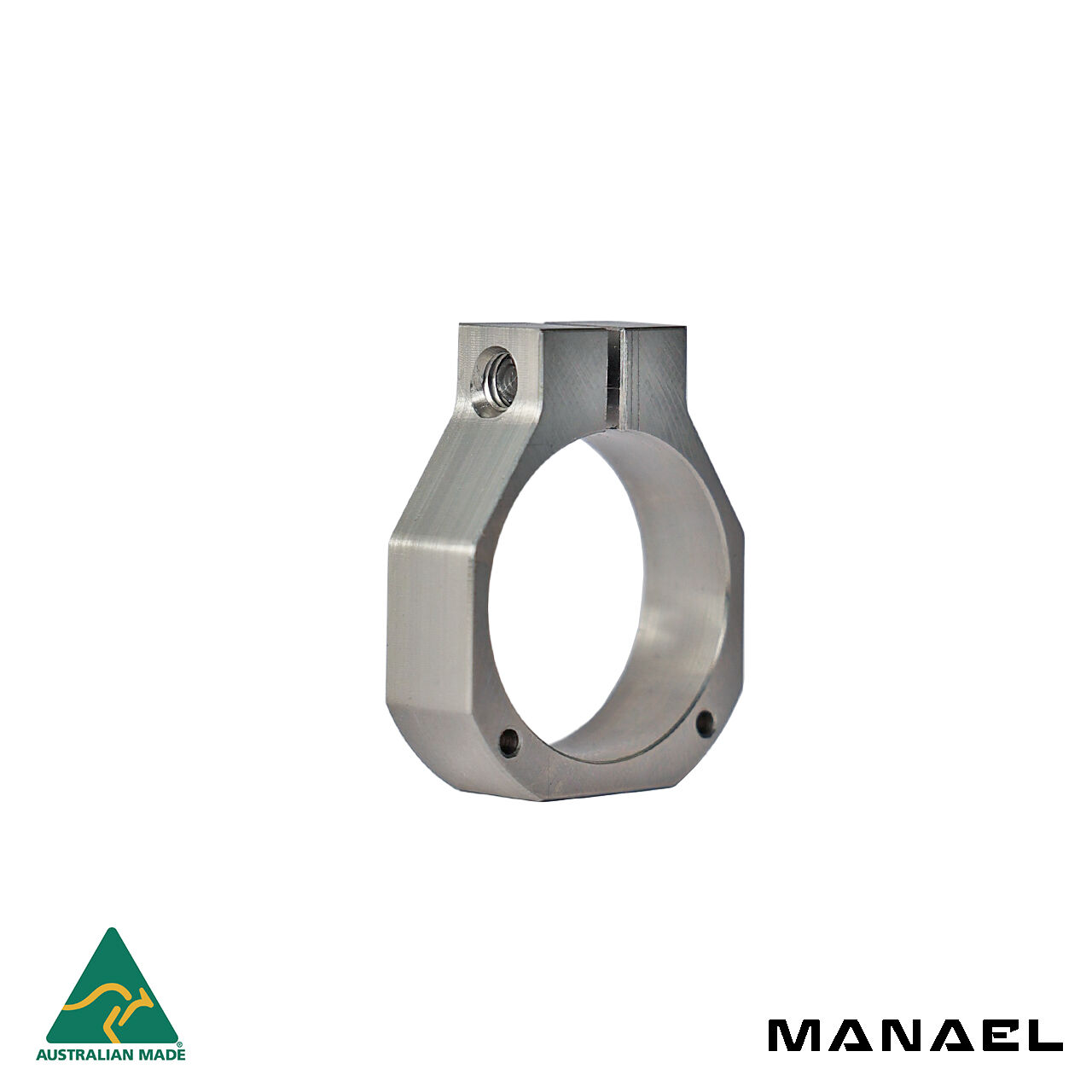

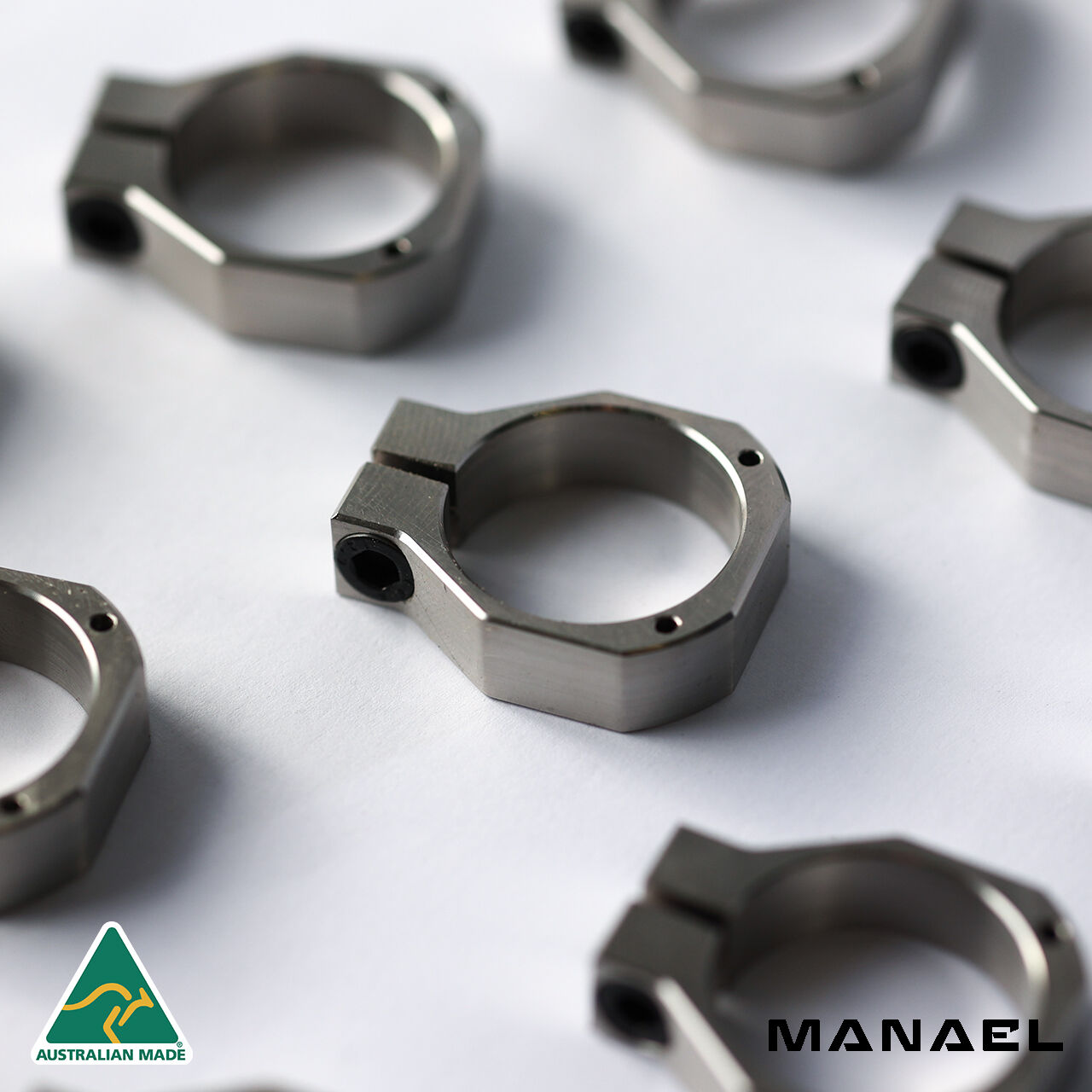

MANAEL Tikka Switch Lug

Switch barrel system component — Tikka T3 / T3x / T3 CTR

Australian made In stock — ships now

The MANAEL Tikka Switch Lug lets you swap barrels on your Tikka T3, T3x, or T3 CTR without a trip to the gunsmith. One M5 Allen key is all you need in the field: loosen the lug, unscrew your barrel, screw in the new one, tighten up. Done.

Designed for competition shooters and hunters who need one rifle to do more than one job. You may be switching between a lightweight hunting barrel one season and a match-grade barrel the next, or keeping a spare barrel in the bag for a different calibre. Each barrel requires a one-time gunsmith fit, but once that's done, using the MANAEL Switch Lug, changes are fast, repeatable, and consistent.

In our experience as gunsmiths working with switch barrel systems for over 10 years, most installations torque to 16 inch-pounds but always confirm the optimum setting with your gunsmith, specific to your rifle build and chamber.

Designed and manufactured in Australia by MANAEL, using premium 316 stainless steel. Order today and it ships direct.

Zero repeatability

When paired with a quality chamber job and properly fitted barrel tenon thread, zero returns consistently after each barrel change within 1 MOA. Minor scope clock adjustment may be needed between barrels. For the best results, consult with your gunsmith to confirm barrel thread fit, chassis or stock fitment, and action screw torque settings are all optimised as part of the initial fit.

Compatibility

• Tikka T3, T3x, T3 CTR Actions
• Requires barrel modifications by a gunsmith
• Compatible with most chassis and stocks with a standard Tikka external diameter
  Note: if your Picatinny rail overhangs the front of the receiver, minor trimming of the rail may be required
• Fits all MANAEL chassis without chassis modification
• Clamp system made to suit standard Metric M5 screws for easy replacement and allen key availability

Specifications

• 316 stainless steel
• Weight: 28 g
• Dimensions: 30 mm W x 37 mm H x 10 mm D
• Clamp screw Metric M5 with Allen Key Head

Includes

• Stainless Switch Lug for Tikka T3
• M5 Clamp Screw
• 2 × alignment pins
