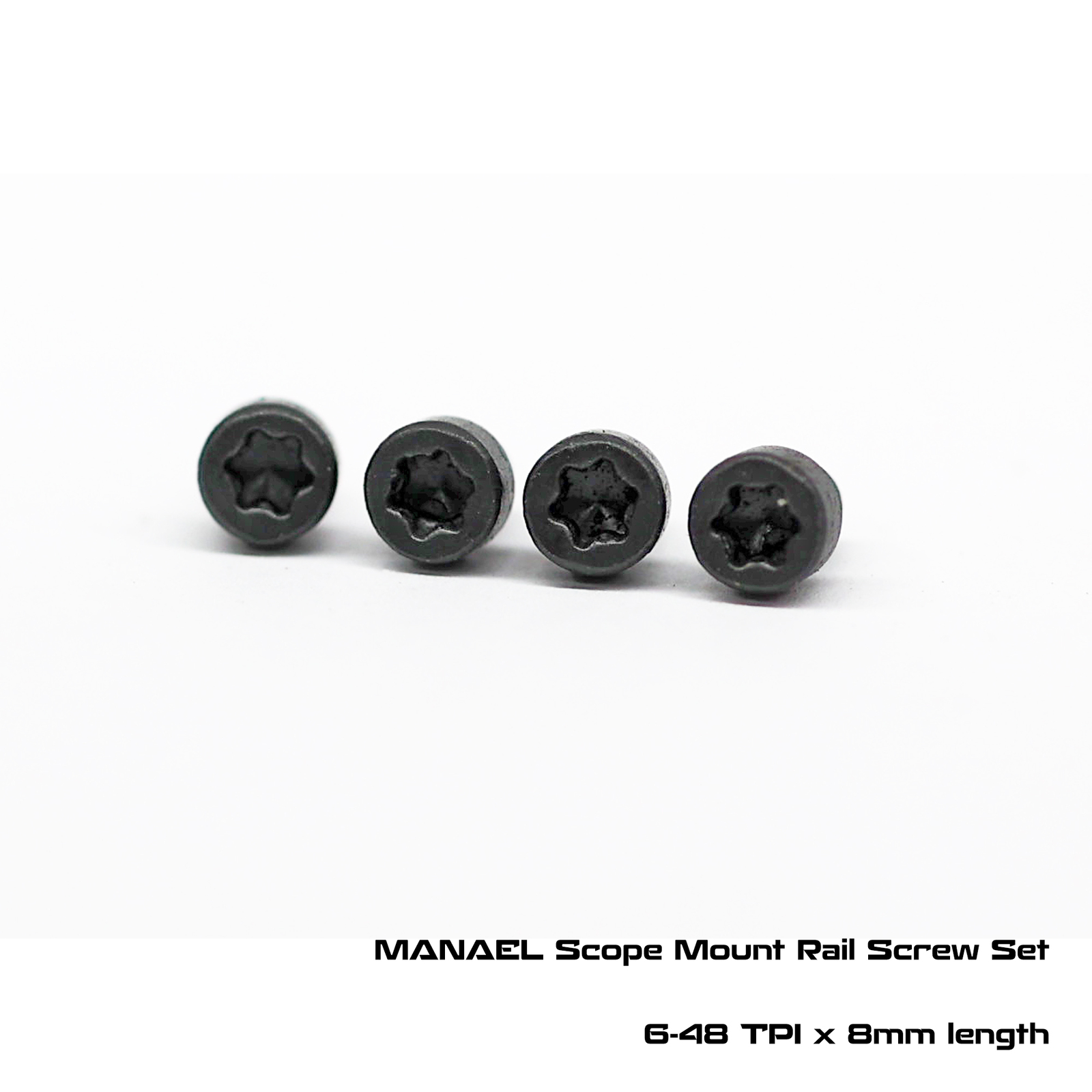

MANAEL Scope Mount Rail Screw Set

Time to get some reliable screws under your scope!

Get a set of these 100% Australian Made Screws to suit your Scope Mount Rail.

Each upgraded screw set offers ultimate reliability when keeping your picatinny rail fixed securely to your rifle. No movement. Just Aussie tough gear keeping your optics in place.

100% Australian Made for superior quality.
Universal fit for most Scope Mount Rails
Compatible with MANAEL Picatinny Optic Mount Rails
Multiple size options to suit most common rifles (see compatability list below)
Weight approx 4 grams per set
4 Screws per set

Finding The Right Scope Rail Screw Compatabile With Your Rifle

MANAEL offers a guide here on compatability and finding the right heavy duty scope rail screws for your rifle or see the chart below.

MANAEL Scope Mount Screw Size	Compatible with Rifle Action	Screw Head (screwdriver size)
6-48 TPI x 8mm length 6-48 TPI x 5mm length Note: These are available in 2 lengths 5mm or 8mm You will need to measure for best size (see below)	Tikka T3, T3X Tikka T1x Remington 700 Short Action Remington 700 Long Action Howa 1500 Short Action Howa 1500 Long Action Remington 7600 & 7615 MANAEL Scope Rails (use 5mm length screws)	Torx T15
M4 Heavy Duty Screw Set	Lithgow LA101 Lithgow LA102 (Select from drop down. there is a difference in length on the LA101 and La102 kits)	Allen Key
8-40 TPI x 8mm length Torx Screw	Rifles with "Oversize" screw compatability by manufacturer (eg Stiller) Or Rifles with "Oversize" screw compatability as upgraded by a gunsmith This size is often preferred by gunsmiths when accurising or upgrading a reciever (by drilling & tapping new screw holes) for heavy duty use / ultimate reliability. You will need to have the appropriate size holes drilled and tapped in your reciever.	Torx T15

MANAEL Scope Mount Screw Size

Compatible with Rifle Action

Screw Head
(screwdriver size)

6-48 TPI x 8mm length

6-48 TPI x 5mm length

Note: These are available in 2 lengths

5mm or 8mm

You will need to measure for best size (see below)

Tikka T3, T3X

Tikka T1x

Remington 700 Short Action

Remington 700 Long Action

Howa 1500 Short Action

Howa 1500 Long Action

Remington 7600 & 7615 MANAEL Scope Rails (use 5mm length screws)

Torx T15

M4 Heavy Duty Screw Set

Lithgow LA101

Lithgow LA102

(Select from drop down. there is a difference in length on the LA101 and La102 kits)

Allen Key

8-40 TPI x 8mm length Torx Screw

Rifles with "Oversize" screw compatability by manufacturer (eg Stiller)

Rifles with "Oversize" screw compatability as upgraded by a gunsmith

This size is often preferred by gunsmiths when accurising or upgrading a reciever (by drilling & tapping new screw holes) for heavy duty use / ultimate reliability.

You will need to have the appropriate size holes drilled and tapped in your reciever.

Torx T15

How do I measure correctly for the best fitting replacement length MANAEL Scope Mount Screw ?

Measure your existing screws from rifle / scope rail.
Alternatively, the depth can be found by placing your scope rail on top of the reciever. Align the scope rail holes & reciever holes and mesure depth by inserting verniers into hole.
